Platform Hot Dipped Galvanized Steel Grating Twisted Bar High Strength

China Platform Hot Dipped Galvanized Steel Grating Twisted Bar High Strength supplier

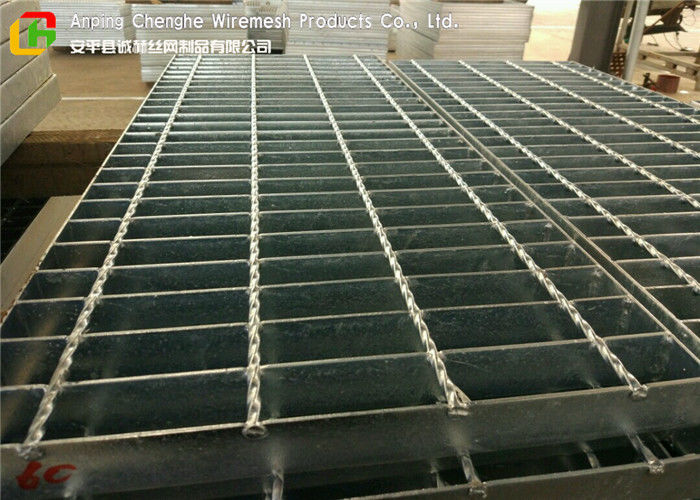

Large Image :  Platform Hot Dipped Galvanized Steel Grating Twisted Bar High Strength

Product Details:

Place of Origin: ANPING,HEBEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001
Model Number: 1000*850 850*700 1000*1000

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Packaging Details: Packed with Plastic film then on the pallets
Delivery Time: 15-20DAYS
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild Steel & Low Carbon Steel, Etc Finished: Gavlanized / Painted / Untreated
Min.Order:: 50 Square Meter Height: 10-150mm
Twisted Steel: 5*5 6*6 8*8 Product Name: With Twisted Steel Bar 6*6 5*5 8* Hot Dipped Galvanized Steel Grating For Platform
Zinc Coating Rate Of The Steel Grating: BS EN ISO 1461-2009 GB/T13912,ASTM(A123),BS729 Standard: YB/T4001-1998 ANSI/NAAMM (MBG531-88) BS4592-1987 , AS1657-1985



With Twisted Steel Bar 6*6 5*5 8* Hot Dipped Galvanized Steel Grating for Platform



specification:



Hot Dipped Galvanized Steel Grating is the product in accordance with customers requirements that is lined by load flat steel and horizontal rod alternately in a certain space, welded into primary plate in the high voltage resistance welding machine, then through the deep-processing of such working procedures as cutting, slitting, tapping, bordure, etc.



Steel grating plate, also known as steel grating, grille plate, is flat steel in accordance with a certain
spacing and cross bar arrangement, and welded into a middle with a square grid of a steel products, mainly used to do ditch cover Plate, steel platform plate, steel ladder of the step board. The bar is generally made of twisted square steel.



Twisted steel bars are the steel bars which comes with the right combination of Strength & Flexibility. This elongation helps to protect any construction structure.The mechanical interlock between steel and concrete is critical in reinforced concrete. Early concrete reinforcing was sometimes smooth and square. This shape did not create much friction to make a solid interlock. One solution to this problem was to twist the bar like a corkscrew with creates many teeth for a strong mechanical lock. The primary drawback to doing this is that the twisting causes the steel to work harden and become more brittle.

Platform Hot Dipped Galvanized Steel Grating Twisted Bar High Strength



Our Products Hot Dipped Galvanized Steel Grating
Material Standard

ASTM A36, A1011, A569, Q235, S275JR,

SS304, Mild steel & Low carbon steel, etc

Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5,

40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc;

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',

1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,

32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Surface treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Packing 1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements.



Anchor – A device by which grating is attached to its supports.

Band – A flat bar welded to the end of a grating panel, or along the side of a cutout, and extending neither above nor below the bearing bars.
Load Carrying Band: A band used to transfer load between bearing bars.
Trim Band: A band which carries no load, used primarily for appearance and closing open ends.

Bearing Bars – Load carrying main elements made from steel, aluminum, or stainless steel, extending in the direction of the grating span.

Bearing Bar Centers – The distance center-to-center of the bearing bars.

Carriers – Flats or angles which are welded to the grating panel and nosing of a stair tread and are bolted to a stair stringer to support the tread.

Clear Opening – The distance between faces of bearing bars in rectangular gratings, or between a bent connecting bar and a bearing bar in a riveted grating.

Cross Bars – The connecting bars which extend across the bearing bars, usually perpendicular to them. They may be bent into a corrugated or sinuous pattern and, where they intersect the bearing bars, are welded, forged or mechanically locked to them.

Cross Bar Centers – The distance center-to-center of the cross bars.

Curved Cut – A cutout following a curved pattern.




Advantage of With Twisted Steel Bar 6*6 5*5 8* Hot Dipped Galvanized Steel Grating for Platform



Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.



The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.


Hot - dip galvanized treatment: Good rust-proof property, maintenance-free replacement. as BS EN ISO 1461-2009 GB/T13912,ASTM(A123),BS729



Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.(use round bar or bolt&nut with washer&spring washer)



Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.



High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.



Product Picture

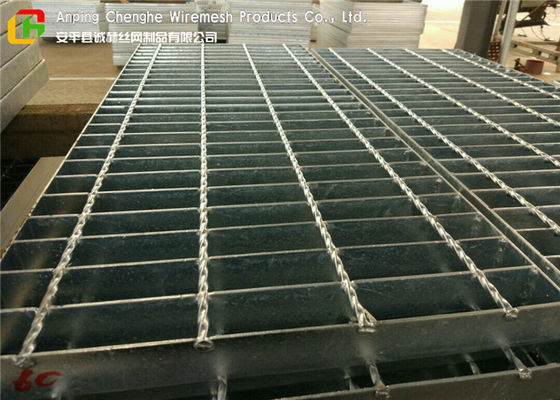

Platform Hot Dipped Galvanized Steel Grating Twisted Bar High Strength
