Waste Treatment Plant Compound Steel Grating Surface Glossy With Fish Tail

China Waste Treatment Plant Compound Steel Grating Surface Glossy With Fish Tail supplier

Large Image :  Waste Treatment Plant Compound Steel Grating Surface Glossy With Fish Tail

Product Details:

Place of Origin: HE BEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001
Model Number: A36 Q195 Q235 Q275 Q345 304 316 304L 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Delivery Time: 15-20 Days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: A36 Q195 Q235 Q275 Q345 304 316 304L 316L Fish Tail: 75x25x5mm
Name: With Fish Tail Galvanized Compound Steel Grating For Waste Treatment Plant Projects Transport Package: Packaged By Steel Belt With Pallet
OEM: Available Applications: Platform, Corridor, Bridge, Well Covers And Stairs, Fencing For Petroleum, Chemical, Power Plant, Waste Treatment Plant, Civil Engineering Projects And Environmental Projects



With Fish Tail Galvanized Compound Steel Grating for Waste Treatment Plant Projects





Description:



Compund steel grating is composed of checkered plate on sealed surface & steel grating with certain spanning capability.The checkered plates are normally in the thickness of 3mm, 4mm, 5mm or 6mm.Compund steel grating is formed of any aype of ateel grating and checkered plate in different thickness.The type of G253/30/100, G323/40/100 , G323/60/100 are generally used as base and the checkered plate with 3mm is used as sealing plate.As thermal stress may cause shape distortion after hot-dip galvanizing treatment especially choosing large spacing grating.so special attention should be paid whrn choosing grating type.

Special specifications can be produced by the customer's requirements.



Compound Steel Grating is composed of a span bearing capacity of the steel frame and the sealing surface of the pattern plate of a product.In the steel grid plate side or bottom weld steel net made of complex network, can prevent small drop, in the barn, restaurant, warehouse can prevent the mice or other animals.



Grating Standardizations:



Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650



Benefits



High strength, light structure,high corrosion resistance, durable

Attractive appearance, surface glossy, no accumulation of dirt, no accumulation of rain and snow, No water, self-cleaning, easy to maintain

Ventilation, lighting, heat, anti-skid,good explosion-proof,easy to install, remove.

Shipping Information:

  • FOB Port:Tianjin
  • Lead Time:7 - 15 days
  • Dimensions per Unit:5.8 × 1 × 0.03 Meters
  • Weight per Unit:200 Kilograms
  • Units per Export Carton:1000
  • Export Carton Dimensions L/W/H:11.8 × 2.35 × 2.35 Meters
  • Export Carton Weight:27 Tons (US)





Our Services:



- We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

- OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

- Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.





Installation Method:

- Directly weld the steel grating plate or footboard in the support steel structure, and the welding place brushes zinc powder paint.

- Uses special-purpose steel grating installment clamp, which does not destroy galvanization level, disassembles and assembles conveniently. Each set of installation clamp includes up-clamp, down-clamp, head bolt and nut.

- According to the need, provide stainless steel installment clamp or bold jointing and so on tight method.

- Generally the gap between steel grating plate is 100mm.

- The steel grating plate which approaches the vibration should weld or add rubber packing.

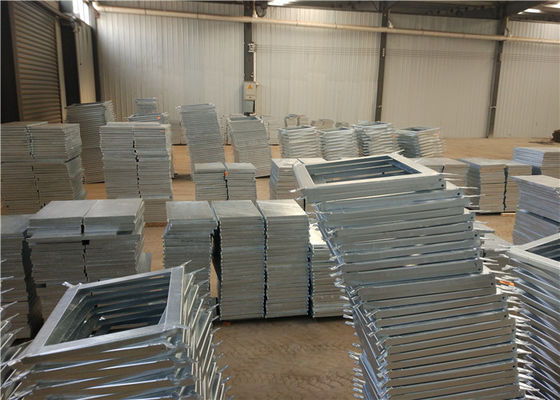

 Picture;





Waste Treatment Plant Compound Steel Grating Surface Glossy With Fish Tail
