Lightweght Compound Steel Grating Anti - Explosion With Handle / Armrest

China Lightweght Compound Steel Grating Anti - Explosion With Handle / Armrest supplier

Large Image :  Lightweght Compound Steel Grating Anti - Explosion With Handle / Armrest

Product Details:

Place of Origin: HE BEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001
Model Number: A36 Q195 Q235 Q275 Q345 304 316 304L 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Delivery Time: 15-20 Days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: A36 Q195 Q235 Q275 Q345 304 316 304L 316L Angle Bar: 65*40 25*25 40*40 65*65 150*75 150*90
Name: With Handle Or Armrest Galvanized Compound Steel Grating For Drain Or Building Delivery Lead Time: 2-4weeks
HS Code: 7308900000 Applications: Platform, Corridor, Bridge, Well Covers And Stairs, Fencing For Petroleum, Chemical, Power Plant, Waste Treatment Plant, Civil Engineering Projects And Environmental Projects

With Handle or Armrest Galvanized Compound Steel Grating for Drain or Building





Description:



Composite steel grid grating is composed by steel grid grating of certain load-bearing and checkered plates.

This kind of bar gratings may deform going through the hot dipped zinc coating process. So heavy type steel bar with big gauge is normally chosen in making composite steel grid gratings.

The checkered plates are normally in the thickness of 3mm, 4mm, 5mm or 6mm.

composite lattice steel plate by hot-dip zinc processing, it will be due to thermal stress generated warpage, in particular the use of larger models steel grid plate, school-more difficult, please note that selection.



We continuously improve product quality and production scale. The series of steel grating contain welded steel grating, pressure lock steel grating, plug grating, Steel grating ceiling, gully and well cover, compound steel grating, stair tread, platform steel grating, tree pool cover, galvanized steel grating, heavy duty steel grating. They are widely used in petroleum, chemical, ports, power, transportation, papermaking, foodstuff, medicine, steel, municipal, real estate, manufacturing, etc.
Our factory strives for the survival by the quality of the management idea, has a team which is engaged in production and manufacturing specialists for many years. Product quality can meet all the Chinese YB4001-1991, YB/T4001-1998 standards, and British BS4592-1-1995 and American ANSI/NAAMM (MBG531-88) standard. At the same time, we also can design according to customer requirements of special steel grating plate products.



Grating Standardizations:



Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650



Features:

High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.
Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.
Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.
Prevent dirt deposition.

Our Services:



- We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

- OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

- Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.



  1. Question: Can you produce the steel grating according to the sizes of the customers requirement?

    Answer: Most supplying steel gratings are produced according to the drawing. There are design and technical departments in our company, the specialist in these departments have many years of development experience.

  2. Question: We are going to buy press-locked steel grating, what is the maximum size of bearing bar?

    Answer: The maximum size of press locked steel grating is 2500 × 2200 mm, 2500 mm is the maximum length of bearing bar, 2200 mm is the maximum length of crossing bar, the size of the corresponding standard mesh is 34 mm × 33 mm.

  3. Question: Can I replace or return the received goods?

    Answer: According to your letter or claim, we will be processed within two working days, because our company is committed to providing high quality service to our customers.

  4. Question: What are the benefits of choosing your company as regular customers?

    Answer: If choose our company, each customer can enjoy a certain discount. And each customer will be assigned a manager who is responsible for working with the business.

  5. Question: What's standard that the products accord with?

    Answer:
    1. AS 1657-2013 Fixed platforms, walkways, stairways and ladders - Design, construction and installation.
    2. BS EN ISO 14122-1 Safety of machinery Permanent means of access to machinery Part 1: Choice of fixed means and general requirements of access.
    3. BS EN ISO 14122-2 Safety of machinery Permanent means of access to machinery Part 2: Working platforms and walkways.
    4. BS EN ISO 14122-3 Safety of machinery Permanent means of access to machinery Part 3: Stairs, stepladders and guard-rails.
    5. BS EN ISO 14122-4 Safety of machinery Permanent means of access to machinery Part 4: Fixed ladders.
    6. BS 4592-1 Industrial type flooring and stair treads. Metal open bar gratings - Specification.
    7. In addition to the above standards, we can also produce steel grating that meets other national standards in accordance with customer's requirements.

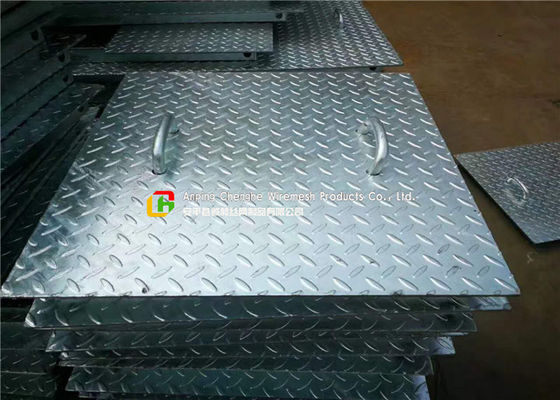

 Picture;



Lightweght Compound Steel Grating Anti - Explosion With Handle / Armrest
