Removable Galvanized Steel Stairs , Non Slip Stainless Steel Stair Treads

China Removable Galvanized Steel Stairs , Non Slip Stainless Steel Stair Treads  supplier

Large Image :  Removable Galvanized Steel Stairs , Non Slip Stainless Steel Stair Treads

Product Details:

Place of Origin: HE BEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001
Model Number: A36 Q195 Q235 Q275 Q345 304 316 304L 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Delivery Time: 15-20 Days
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Detailed Product Description
Material: A36 Q195 Q235 Q275 Q345 304 316 304L 316L Model: T1,T2,T3,T4
Name: T1,T2,T3,T4 Galvanized Steel Stair Treads Grating For Ladder Or Steel Structures Width: 25mm 30mm 32mm 38mm 40mm As Your Request
Port: Xingang(tianjin),China HS Code: 730890000

T1,T2,T3,T4 Galvanized Steel Stair Treads Grating for Ladder or Steel Structures



Description:



Stair treads in each of these metal grating types come in both plain and serrated styles. Our serrated stair treads, also known as safety treads, are specifically designed to offer good protection against slips in areas prone to oil or other hazardous elements. Therefore, metal safety treads are perfect for industrial facilities or outdoor sites where slippery conditions may exist from time to time.

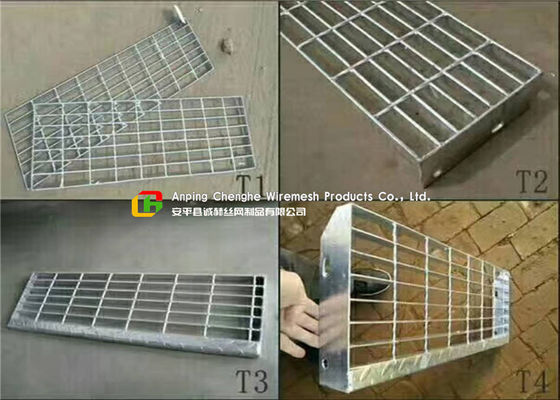

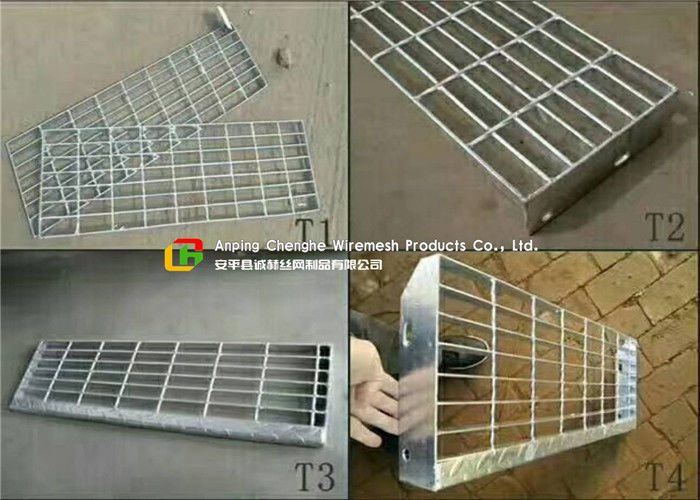

1. T1 treads
Making use of ordinary flat pedals, ordinary flat steel edging, no welding pattern guard and non-slip, no welding mounting side-plate, the structure is simple, relatively low use or temporary places. When installed on a welded steel beams, simple,
economic, practical, this is a small project using more extensive.



2. T2 treads
Ordinary flat and welded, the welding ends of the pedal mounting end plate, end plate and the hole diameter of 14mm
long hole each. Hit the corner of the end plate hole chamfer length, its purpose is to facilitate the installation. Need to complete the post-production punch bolted on steel beams. Such is adopted more widely, features: removable and reusable.



3. T3 treads
Such models treads on treads varieties are the most widely used. Welding checkered front angle, played a beautiful, non-slip, wear-resistant effect. When installed using welding installation methods, and simple saving. Such pedal with
checkered cover the sharp edges and corners, to avoid serious injury caused by the slide bump



4. T4 treads
T4 treads T3 combines the advantages and benefits of a safe and beautiful T2 treads treads bolt installation. It can to bolt installation, easy disassembly; then welded checkered Corner, beautiful and safe correct. Reuse high, a collection of more than a few of the advantages of the product price in this series is the highest.



5. T5 treads
T5 treads are using with the groove-shaped bar made of steel angle, instead of the checkered angle to use. Effect, quality, use and using the same methods and T3 treads. Using less.



6. T6 treads
T6 is the use of the same pedal with groove-shaped bar made of steel angle, instead of the checkered angle to use. Effect, quality, with passers-by and use the same side and T4 treads. Since the appearance of the strip steel angle checkered inferior angle, using less.

Stair Treads Steel Grating Specification
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar load(width×thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50

G605/60/50



1)Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.



2)steel bar :  25x5,  30x5,  45x5mm and so on



3)wire diameter :  6mm  ,  8mm and so on we can do as your demand



4)hole size  :  25x50mm  ,  50x100mm ,  100x 30mm and so on we can do as your demand



5)packing : iron pallet



 6)surface treatment  : PVC painting , galvanized , hot dipped galvanized



7)Style:plain,serrated,I-shape.



Common specifications:

Steel Grating Standard Steel Standard Galvanized Standard
China standard YB/T 4001.1-2007 GB/T 13912-2002
USA standard ANSI/NAAMM(MBG531) ASTM(A123)
U.K.standard BS4592 BS729
Australia standard AS1657 AS1650




Features:


High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.
Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.
Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.
Prevent dirt deposition.

Our Services:



-We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

-OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

-Once receiving customers’ inquiries. Our company promises to provide services within 24 hours



Picture:

Removable Galvanized Steel Stairs , Non Slip Stainless Steel Stair Treads
