LTA / HDB Vehicular Heavy Duty Steel Grating For 70 X 6 Bearing Bar Size

China LTA / HDB Vehicular Heavy Duty Steel Grating For 70 X 6 Bearing Bar Size supplier
LTA / HDB Vehicular Heavy Duty Steel Grating For 70 X 6 Bearing Bar Size supplier LTA / HDB Vehicular Heavy Duty Steel Grating For 70 X 6 Bearing Bar Size supplier

Large Image :  LTA / HDB Vehicular Heavy Duty Steel Grating For 70 X 6 Bearing Bar Size

Product Details:

Place of Origin: HE BEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001
Model Number: Q195 Q235 Q275 Q345 304 316 304L 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Delivery Time: 15-20DAYS
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: Q195 Q235 Q275 Q345 304 316 304L 316L Surface Treatment: Hot Dipped Galvanized,Untreated,painted
Name: LTA HDB PUB DIC Galvanized Vehicular Heavy Duty Steel Grating Supply Ability: 1*20'/ Week Steel Grating
Application: Industrial Floors,Ramps,Docks,Airfields,Highways,Reinforced Concrete Areas,vault Covers, Ramps And Docks, Industrial Flooring And Trenches, Off-shore Drilling Rigs And Paper Mills. Bearing Bar Size: 70x6,75x8,80x8,90x8,100x8120x8,130x8,150x8,90x22,90x9



LTA HDB PUB DIC Galvanized Vehicular Heavy Duty Steel Grating





Description:



Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings.



Production Process:

Heavy-duty steel grating uses automatic welding technology, combined with high temperature and high pressure, a permanent connection is formed between the bearing bar and the cross bar.

The standard of heavy duty steel grating:

DIN: 1072

Materials & Finishes:

Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.





Table 2: Common Mesh Spacing of Heavy-Duty Press-Locked Steel Grating
Bearing Bar Spacing Cross Bar Spacing
mm mm
25 50 75 100
50 50 75 100
75 50 75 100
100 50 75 100

Packaging:

  • Strap packing: Generally used for neat press locked steel grating.
  • Pallet packing: Generally for the press-locked steel grating which need to export and load in container.
  • Screw rod fixation: Use four screw rods through the mesh and fixed with screws.


Applications;

airfield landing mats and trenches, airplane unloading ramps, highway bridge decking and sidewalks, concrete reinforcements, vault covers, ramps and docks, industrial flooring and trenches, off-shore drilling rigs and paper mills.

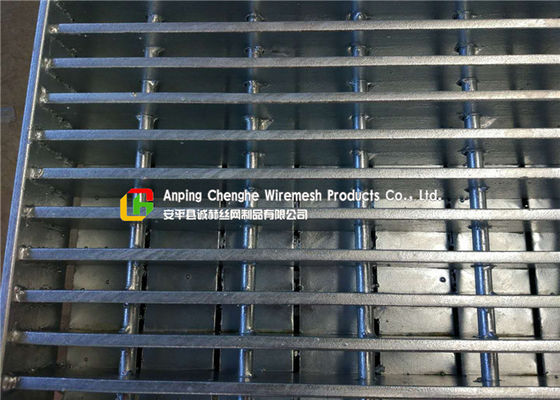

Products Picture;LTA / HDB Vehicular Heavy Duty Steel Grating For 70 X 6 Bearing Bar Size
