Precision Stainless Steel Walkway Gratings Flat Steel Space 10 Mm Or 11 Mm And 12mm

China Precision Stainless Steel Walkway Gratings Flat Steel Space 10 Mm Or 11 Mm And 12mm supplier

Large Image :  Precision Stainless Steel Walkway Gratings Flat Steel Space 10 Mm Or 11 Mm And 12mm

Product Details:

Place of Origin: HE BEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001, SGS
Model Number: A36 Q195 Q235 Q275 Q345 304 316 304L 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: standard packing ,Bundle with metal pallet in Conatiners or as the customs requirement
Delivery Time: 15-20DAYS
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: Mild Steel Flat Bar: 44x6 25x5 25x3
Name: Dense Welded Steel Walkway Grating, Flat Steel Space 10 Mm Or 11 Mm And 12mm Surface Treatment:: Hot Galvanized
OEM: Available Angle Bar: 70x70x6 60x60x5

Dense Welded Steel Walkway Grating, Flat Steel Space 10 mm or 11 mm and 12mm



Description:



Dense steel grating is a kind of welded steel grating with the spacing of bearing flat steel less than 25 mm. It is mainly used in the occasion have higher request for gratings.

Galvanized Steel Walkway Grating is the product in accordance with customers requirements that is lined by load flat steel and horizontal rod alternately in a certain space, welded into primary plate in the high voltage resistance welding machine, then through the deep-processing of such working procedures as cutting, slitting, tapping, bordure, etc.

Galvanized Steel Walkway Grating has strong impact resistance, strong corrosion resistance and heavy load capacity, elegant and beautiful, and has excellent performance in municipal subgrade and steel platform construction projects. The high cost performance is the construction project of the hot galvanized steel lattice plate widely used in the pavement of the old and new subgrade.
It has long service life is, it is generally within the range of 40 years -50 years. The hot-dip galvanized steel plate is a very good steel frame structure and bearing platform without the participation of the destructive factors.



Grating Standardizations:



Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650

Specific application:



Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and they offer the following the features:

Specification: The space of flat steel is 12 mm or 20 mm, the spacing of horizontal pole is 30 mm or 50 mm.



Feature: In addition to having the advantage of appearance form and easy installation, Dense steel gratings also meet the request of special occasion pass through or leave out object size. For example, where the larger flow, can demand the request of Ms. high-heeled shoes walk; for industrial and mining enterprises, the request of doesn't allowing large objects (such as the steel ball of the diameter less than 10 mm) leave out.



Application: Main used for the occasion have higher request of steel grating, such as, ships, drilling platforms, offshore platforms, walkways, etc. to prevent objects falling. Also used factory aerial work platforms and high-level working platform shop, avoiding wound by the high-altitude litter.



Common specifications:
Materials Standards ASTM A36, A1011, A569, Q235, S275JR,
SS304, mild steel and low carbon steel,
Bearing bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5,
40x5, 50x5, 65x5, 75x6, 75x10---100x10mm
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standards: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',
1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8''
Bearing bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,
32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm
US standards: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2
Twisted cross Bar pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' and 4''
Surface treatment black, self color, hot-dip galvanized, painted, spray coating
Grating style plain /smooth, serrated /teeth, I bar, serrated I bar
Packing 1. LCL: packing with plastic film then on the pallets
2. FCL: nude packing
3.other special packing according to customers' requirements
Payment terms T/T ( 30% deposit , 70% balance against BL copy ) ,or L/C, PayPal, Western Union, MoneyGram, Credit Card ,OA





Our Services:



1. We can provide free steel bar grating samples of small sizes, but customers need to pay the express cost.(This can be discussed)

2. OEM is accepted. We have technical engineers. Then we can design steel bar grating for customers’

projects, and make

products according to customers’ drawing.

3. Once receiving customers’ inquiries. Our company promises to provide services within 24 hours.



Pictures:

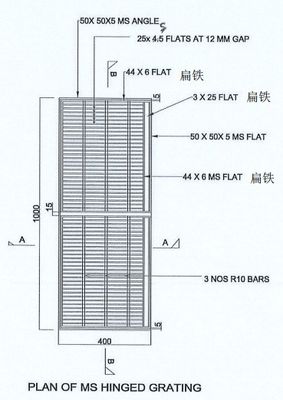

Precision Stainless Steel Walkway Gratings Flat Steel Space 10 Mm Or 11 Mm And 12mm







Precision Stainless Steel Walkway Gratings Flat Steel Space 10 Mm Or 11 Mm And 12mm
