Flat Bar Steel Grate Drain Cover For Residential Area Drainage Channels

China Flat Bar Steel Grate Drain Cover For Residential Area Drainage Channels supplier

Large Image :  Flat Bar Steel Grate Drain Cover For Residential Area Drainage Channels

Product Details:

Place of Origin: HE BEI
Brand Name: CHENG HE
Certification: ISO9001
Model Number: Q195 Q235 Q275 Q345 SS304 316 304lL 316L

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Sea-worthy packing, ie wooden or steel tray with steel strip,etc
Delivery Time: 15-20DAYS
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: Q235 195 275 345 SS304 316 304lL 316L Name: Malaysia Flat Bar Steel Grate Drain Cover For Residential Area Drainage Channels
Supply Ability: 1000 Tons Per Day Shipment: 7-25 Days
Surface Treatment: Hot Dip Galvanized Application: Residential Drainage System,Urban Sewerage System,Urban Drainage System
Surface Treatment: Hot Dipped Galvanized Product Name: Steel Bar Grating,Grating Material,heavy Duty Steel Grating Serrated Flat Bar Trench Drain Cover Prices
Type: Plain Bar Grating

Malaysia Flat Bar Steel Grate Drain Cover For Residential Area Drainage Channels



Description:



Drain cover is usually used in the side of the road and swage treatment plant, it is for water drainage.Trench Drain Cover Gratings are steel lattice panels formed with simple lines, secured with hinged lid and connection. Ideal replacement drainage covers for conventional cast iron materials. Suitable for light type and large span heavy loading environment. Widely used in sewage treatment system in urban roads, squares, gardens, docks, airports, parking lots, roads, railways, industrial engineering and other types of industrial buildings.



80% of our products are exporting to Bruner, Malaysia and Singapore,and customers are very satisfied with our products.

Feature:



Appearance: simple lines. Silver exterior, modern trends.
Best drainage: leakage area of 83.3%, more than double the cast iron.
Hot-dip galvanizing: rust-proof and strong, maintenance and replacement.
Security design: box with hinged lid and connection, security, safe, easy to open.
Saving investment: large span. When overloaded, the lowest ratio of iron and saves replacement costs stolen, then crushed.
High strength: strength and toughness is much higher than cast iron, can be used for terminals, airports and other large span and heavy load environment.
Specifications and more: meet different environment and loading requirement. Span, the desired size and shape.

Materials & Finishes

We design and manufacture many kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating, I Bar Type Steel Grating and other gratings. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We also supply standard steel grating and in customized shapes per client's requirements.
1) Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10;

2) Bearing Bar Pitch (center to center):
12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement but 30, 40, 60mm are recommended.

America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on.>


3) Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.
4) Material:
Mild Steel (Low Carbon Steel ASTM A36 or Q235) , Stainless Steel 304 or 316
5) Surface Treatment:
Untreated, Painting or Hot dip Galvanizing
6) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.


Product name Stainless steel grating
Type Welded steel grating, pressure-locked, socket-welding
Bearing Bar Pitch(mm) 12.5,15,20,25,30,35,40,50mm
Cross Bar Pith(mm) 20,38,50,80,100mm
Thickness(mm) 3mm , 4mm, 5mm, 6mm, 8mm,according to customers' requirement
Material Stainless steel 201/304/316
Surface Treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
Fields Of Application Platforms ,sidewalks,filter grates,ventilation grates,driling stages,
ladder steps,ditch grates,fences,framedgrates,trash rack grates ,
paint backing chambers and so on
MOQ 1pc
Delivery Time 5-30days
Supply Capability 300 pcs
Free Sample Available



Common specifications:

Steel Grating Standard Steel Standard Galvanized Standard
China standard YB/T 4001.1-2007 GB/T 13912-2002
USA standard ANSI/NAAMM(MBG531) ASTM(A123)
U.K.standard BS4592 BS729
Australia standard AS1657 AS1650




Application



1. Widely used in shipbuilding, harbor, oceanographic engineering, building, paper mills, cement plant, medicine, spinning and weaving.

2. Is applied in food stuff factory, transportation, municipal administration, parking lot , etc.

3. Also used by various plants such as electric power, petroleum,chemical industry.



Packaing



1. Strap Packaging: generally applicable to relatively neat grid of steel plate.
2. Pallet Packaging: Usually for export packing.
3. Screw Rod Fixation: using four screws bar through the steel grating aperture, with screw locking packaging methods.



process flow



(1) materian

(2) pressure welding

(3) cutting

(4) welding of ends bar

(5) surface treatment

(6) final shipment

Flat Bar Steel Grate Drain Cover For Residential Area Drainage ChannelsWe provide regular size perhaps you think not suitable, it doesn't matter! Please put your actual measurement size tell us, we can produce according to your needs and requirements for the size . If you want to know the price of our products, please do not hesitated to call us or email to us.

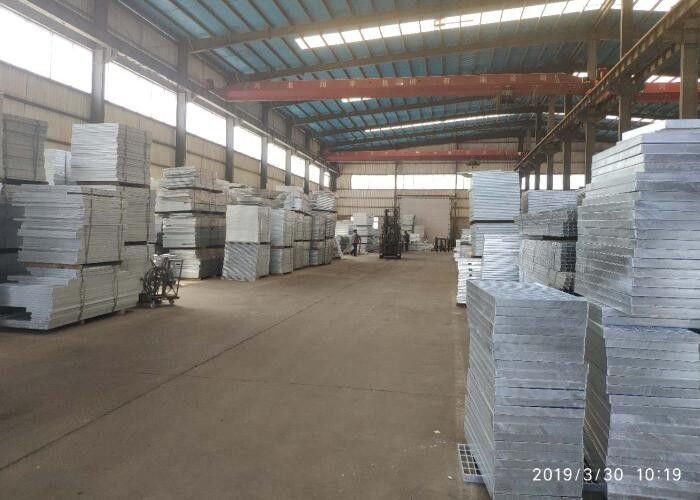

Product Picture

Flat Bar Steel Grate Drain Cover For Residential Area Drainage Channels
