Plain Flat Platform Hot Dipped Galvanized Steel Grating Closed / Open End

China Plain Flat Platform Hot Dipped Galvanized Steel Grating Closed / Open End supplier

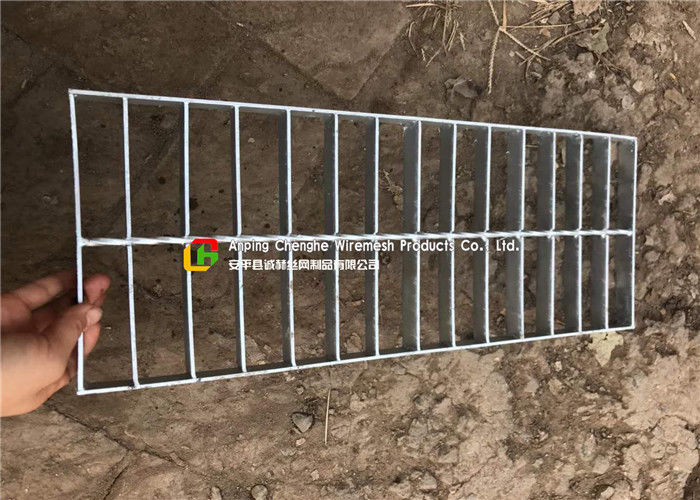

Large Image :  Plain Flat Platform Hot Dipped Galvanized Steel Grating Closed / Open End

Product Details:

Place of Origin: ANPING,HEBEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001
Model Number: 1000*850 850*700 1000*1000

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Packaging Details: Packed with Plastic film then on the pallets
Delivery Time: 15-20DAYS
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Material: ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild Steel & Low Carbon Steel, Etc Finished: Gavlanized / Painted / Untreated
Min.Order:: 50 Square Meter Flat Bar: 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm Etc;
Twisted Steel: 5*5 6*6 8*8 Product Name: With Twisted Steel Bar 6*6 5*5 8* Hot Dipped Galvanized Steel Grating For Platform
Zinc Coating Rate Of The Steel Grating: BS EN ISO 1461-2009 GB/T13912,ASTM(A123),BS729 Standard: YB/T4001-1998 ANSI/NAAMM (MBG531-88) BS4592-1987 , AS1657-1985



With Twisted Steel Bar and Flat bar Hot Dipped Galvanized Steel Grating for Platform



specification:



Hot Dipped Galvanized Platform steel grating consist of a series of bearing bars cross jointed by welding at various intervals with cross bars (twisted square bars, square bars, round bars, flat bars etc.), to form a kind of steel products with square lattices among them.



Steel grating plate, also known as steel grating, grille plate, is flat steel in accordance with a certain
spacing and cross bar arrangement, and welded into a middle with a square grid of a steel products, mainly used to do ditch cover Plate, steel platform plate, steel ladder of the step board. The bar is generally made of twisted square steel.



Twisted steel bars are the steel bars which comes with the right combination of Strength & Flexibility. This elongation helps to protect any construction structure.The mechanical interlock between steel and concrete is critical in reinforced concrete. Early concrete reinforcing was sometimes smooth and square. This shape did not create much friction to make a solid interlock. One solution to this problem was to twist the bar like a corkscrew with creates many teeth for a strong mechanical lock. The primary drawback to doing this is that the twisting causes the steel to work harden and become more brittle.

Plain Flat Platform Hot Dipped Galvanized Steel Grating Closed / Open End

1. Type :Welded steel grating, pressure locked, socket welding
2. Material:Low carbon steel(
ASTM A36, A1011, A569, Q235, S275JR,), stainless steel(340 304L 316 316L), aluminum

3. Flat bar specification:

(1)Plain flat bar:

Thickness: 3mm, 5mm.

Height: 25mm, 30mm, 32mm, 40mm, 45mm, 50mm, 60mm, etc.

(2)I-shaped flat bar:

Thickness of both ends: 5mm.

Thickness of the center: 3mm.

Height: 25mm, 32mm, 38mm, 44mm, 50mm, etc.

4. Flat bar spacing: 30mm, 40mm, 60mm,etc.

6. Cross bar sizes(The connecting bars which extend across the bearing bars, usually perpendicular to them. They may be bent into a corrugated or sinuous pattern and, where they intersect the bearing bars, are welded, forged or mechanically locked to them): 5x5mm, 6x6mm, 8x8mm, etc.

7. Cross bar spacing(The distance center-to-center of the cross bars): 50mm, 100mm.

8. Length of steel grating plate: common length ≥800mm, some platform cover plate length is 3000-10000mm.

9. Two end types:

Closed end Open end

10. Surface process of gratings: there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the zinc surface.it has good anti-corrosive property.



11. Packing conditions of steel grating:normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.






Advantage of With Twisted Steel Bar and Flat bar Hot Dipped Galvanized Steel Grating for Platform:

Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.



The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.


Hot-dip galvanized treatment: Good rust-proof property, maintenance-free replacement. as BS EN ISO 1461-2009 GB/T13912,ASTM(A123),BS729



Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.(use round bar or bolt&nut with washer&spring washer)



Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.



High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.



Detail:Plain Flat Platform Hot Dipped Galvanized Steel Grating Closed / Open End

Product Picture



Plain Flat Platform Hot Dipped Galvanized Steel Grating Closed / Open End
