Serrated Bar Hot Dipped Galvanized Steel Grating Flat Weft Arrangement For Drainage Drain

China Serrated Bar Hot Dipped Galvanized Steel Grating Flat Weft Arrangement For Drainage Drain supplier

Large Image :  Serrated Bar Hot Dipped Galvanized Steel Grating Flat Weft Arrangement For Drainage Drain

Product Details:

Place of Origin: HEBEI,CHINA
Brand Name: CHENG HE
Certification: ISO9001:2008
Model Number: G455/40/100 G605/40/50 G203/30/100

Payment & Shipping Terms:

Minimum Order Quantity: 1KG
Packaging Details: Packed with Plastic film then on the pallets
Delivery Time: 15-20DAYS
Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100T/DAY
Contact Now
Detailed Product Description
Business Type: Manufacturer/Factory Finished: Gavlanized / Painted / Untreated
Min.Order:: 50 Square Meter Panel Size: 1m*5.8m 1m*6m 1m*7m
Twisted Steel: 5*5 6*6 8*8 Product Name: With Serrated Bar Hot Dipped Galvanized Steel Grating For Drainage Drain
Main Products: Steel Grating , Serrated Grating , Platform Grating , Steel Bar Grating , Grating HS Code: 7308900000



With Serrated bar Hot Dipped Galvanized Steel Grating for Drainage Drain



specification:



1. what is steel grating ?( Drainage Drain grating ) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.



Steel grating plate, also known as steel grating, grille plate, is flat steel in accordance with a certain
spacing and cross bar arrangement, and welded into a middle with a square grid of a steel products, mainly used to



Bearing Bar Spacing Cross Bar Spacing Bearing Bar Specification(Depth×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing Bar Spacing Cross Bar Spacing Bearing Bar Specification(Depth×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50




steel grating exporter --- galvanized catwalk steel grating

- power station platform grating

- port platform floor grating

- spray booth floor grating

- water channel grating

- steel stair treads grating

- trench cover grating



Serrated Bar Hot Dipped Galvanized Steel Grating Flat Weft Arrangement For Drainage Drain



Advantages of our company.

-Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
- Over 10 years' experience in hot-dipped galvanizing and 10 years'steel grating manufacture
- Quality guarantee under the control of ISO9001 2000 quality system
- Professional technology and design teams, chart as customers' requirements.

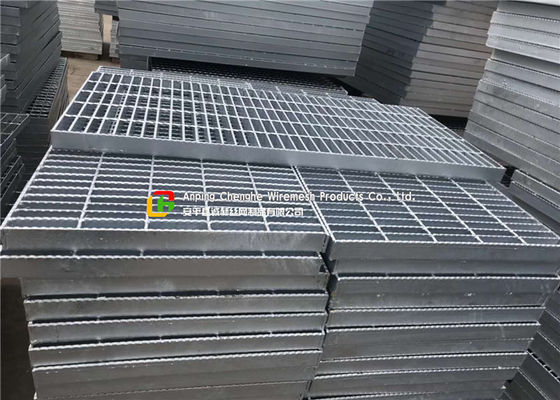

Product Picture



Serrated Bar Hot Dipped Galvanized Steel Grating Flat Weft Arrangement For Drainage Drain
