|Material:||Carbon Steel, Stainless Steel||Finished:||Galvanized / Painted / Untreated|
|Application:||City Road, Gardens, Yard, Airport, Railway And Industrial Engineering||Color:||Silver/Black/White/Yellow|
|Feature:||Light Weight,High Strength,Great Load-bearing Capacity||Product Name:||With Hinge And Frame Hot Dipped Galvanized Steel Grating For City Road Gardens Airport Railway|
|Port:||Tianjin,Xingang||Standard:||YB/T4001-1998 ANSI/NAAMM (MBG531-88) BS4592-1987 , AS1657-1985|
galvanised floor grating,
galvanized platform grating

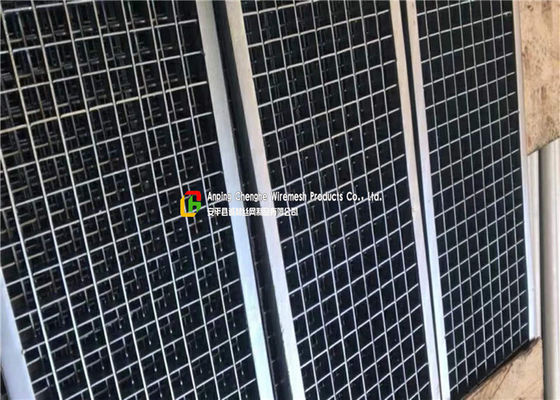

With Plate and Hinge Hot Dipped Galvanized Steel Grating for City Road Gardens Airport Railway
Hot Dipped Galvanized Steel Grating is made by Carbon or mild steel of certain sizes through the processing of grooving, lock-pressure, welding, finishing and other treatment. Industrial bar gratings can be actually made from copper, aluminum and other materials, while galvanized steel grating is the mostly used one due to its economic cost and good property.
This kind of steel grates can be embeded into the cement, which can make it more steady. The most important is that, we add a small plate on the frame, then people can lock the steel grating by clips, this also prevent some naugty children open the grates and jump and play in the sewer. Meanwhile, the surface is hot dip galvanized, it can stop it from being rust.
|Our Products||Hot Dipped Galvanized Steel Grating|
ASTM A36, A1011, A569, Q235, S275JR,
SS304, Mild steel & Low carbon steel, etc
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5,
40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',
1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
|Bearing Bar Pitch||
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,
32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
|Twisted Cross Bar Pitch||38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc|
|Surface treatment||Black, self colour, hot dip galvanized, painted, spray coating|
|Grating Style||Plain / Smooth, Serrated /teeth, I bar, serrated I bar|
|Packing||1.LCL: packed with plastic film then on the pallets
2.FCL: Nude packing
3.Other special package according to customers' requirements.
Steel grating products are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering, and they offer the following the features:
Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.
The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.
Hot-dip galvanized treatment: Good rust-proof property, maintenance-free replacement.
Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Specifications: More specifications and sizes optional for meeting various environment, load, span, sizes and shapes.
Steel grating untreated: Allowing quicker delivery to customers whom fabricate and galvanize the grating on their own.
